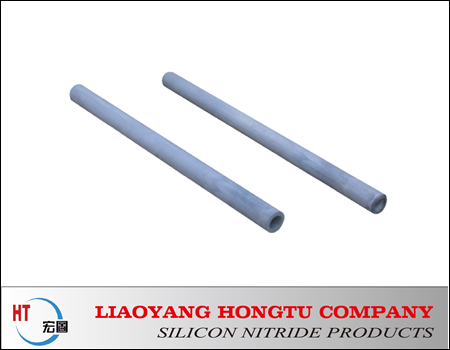

Silicon nitride protection tube

Silicon nitride ceramics possess excellent properties of high thermal stability,antioxidant capacity and good dimensional precision of products.This is essential to detect even tiny temperature differences and permit an effective automatic control loop.Silicon nitride is especially suitable for thermocouple protection tube measuring temperature of molten aluminum for its anti-fusion.In order to guarantee tube's quality,we used the excellent raw material and adopt strict total quality management and advanced techniques.

Silicon nitride protective tube is widely used for non ferrous metal casting.Especially for measuring the temperature of liquid aluminum.

Composition

Si3N4 99%

Volume Density

3.15g/cm3

Hardness

88HRA

Modulus of Elasticity

380Gpa

Bending Strength

480Mpa

High Service Temperature

1350℃

Thermal Expansion Coefficient

2.8 x 10-6/℃

Thermal Conductivity

40~120 W/m.k

Open Porosity

0



Top 10 Reasons to Use Hongtu Si3N4 Tube:

1.Long service life
2.Good abrasive resistance
3.High thermal shock resistance
4.Top refractory
5.Reduced maintenance requirements and ease of maintenance
6.Anti-corrosion in the high-temperature
7.Perfect electrical insulation resistance
8.Good reputations among the customers
9.Professional technology support
10.Customization available
